1.        6650 NHN Polyester fiber non-woven polyester film is made of a non-spinning polyester film polyester fabric bonded composite material made of four soft,heat-resistant grade H Grade.It owns Excellent electrical and mechancial properties especially at high temperature and after being humidified

2.        Application:

3.        It is widly used for small motor and electrical insulation slot liner.Used as the  insulaton against ground and  between turna as well as liner insulation for coil of motors and apparatus.

4.        Certification: ISO Quality certification;SGS System Certification;Electrical machinery industry by product quality supervision and inspection center material testing.

5.        Width:1000mm        Thickness:0.20mm-0.40mm

6.        Form: Roll; Sheet; Strips

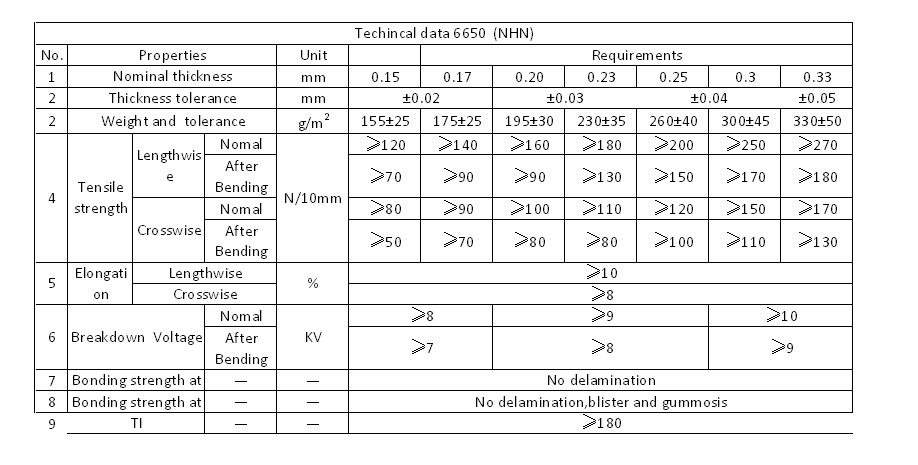

※Note: The values noted in below technical specification are given only for our customers’ reference and should not be used in writing specifications.
