Molded by hands.：

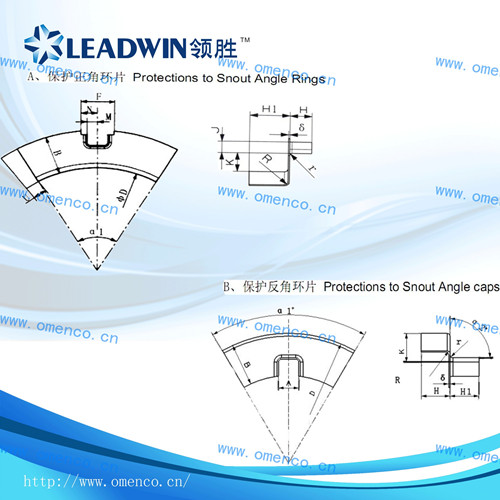

A、 Protections to Snout Angle Rings
B、 Protections to Snout Angle caps
The products can be supplied according to customer’s requirement.
Existing Products of Protections to Snout Angle Rings
|
α1 |
H1 |
H |
B |
D |
R |
r |
M |
δ |
|
29 |
250 |
360 |
204 |
506 |
23 |
13.5 |
36 |
3 |
|
28 |
250 |
510 |
205 |
505 |
22 |
13.5 |
32 |
4 |
|
49 |
250 |
370 |
239 |
491 |
13.5 |
12.5 |
18 |
5 |
Existing Products of Protections to Snout Angle Caps
|
α1 |
α2 |
H |
H1 |
B |
D |
R |
r |
A |
δ |
|
39 |
90 |
250 |
230 |
188 |
577 |
23 |
13.5 |
60 |
3 |
|
66 |
90 |
250 |
350 |
208 |
440 |
22 |
13.5 |
68 |
4 |
Tolerances：
|
Dimension |
H,H1 |
B |
D |
K |
R |
r |
A |
α1 |
α2 |
F |
M |
N |
U |
J |
δ |
|
Tolerance |
0
–3 |
0
–3 |
0
–5 |
±3 |
﹢4
0 |
﹢10
0 |
﹢3
0 |
±20 |
±50 |
﹢4
0 |
±2 |
﹢2
0 |
﹢10
0 |
±3 |
﹢1.5
0 |
|
