1.Our company is committed to providing qualified insulation materials and components for electrical equipments. Main products are transformer insulation board, round device,end loop,stay,angle ring and other components,in order to satisfy technical requirement of large transfomer,of which voltage is AC 500-1000KV  DC±220-800KV

2.Production steps: stock preparation, sheet-forming ,wet multiplying, drying by hot pressing ,cutting

3.Application: strips ,cylinders,spacers, plateas,supports,ect.

4.IEC-Standard: 641-3-1

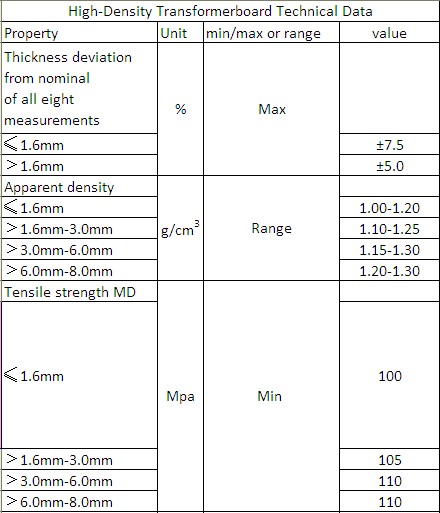

5.Apparent density: 1.0-1.30g/cm3

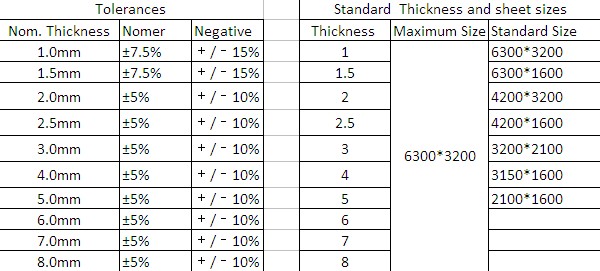

6.Thickness: 1.0-8.0mm

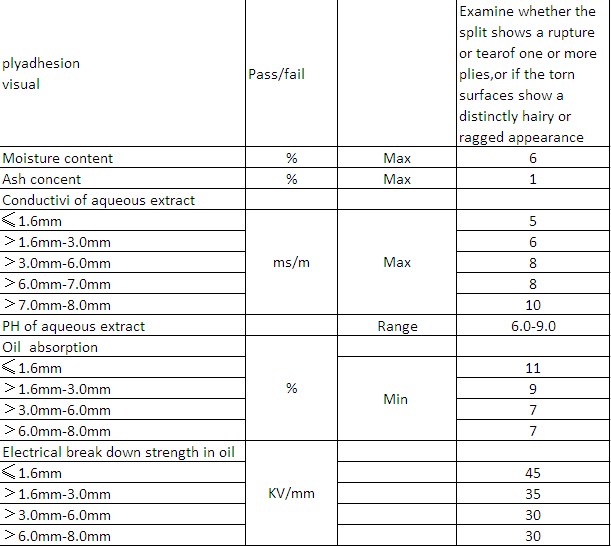

7.Moisture concent: ≤6.0%

8.Surface: Wire marks, uncalendered

9.Raw material: stock preparation, sheet-forming ,wet multiplying, drying by hot pressing ,
cutting
