Faltenbalg

Insulation components are made of 100% E-grade pulp by using special molds and professional manufacturing method or special machine to ensure its insulation and mechanical strength in oil-immerged power equipment.

Tolerances：

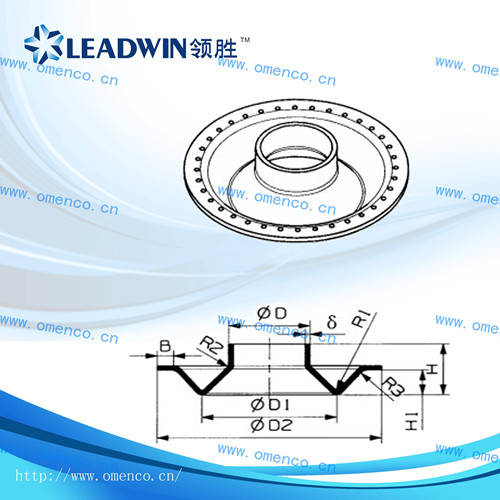

Dimension	D	D1	D2	H	H1	B	R	δ
Tolerance	﹢5 0	±2 0	﹢6 0	﹢6 ﹣4	±5 0	﹢3	±5	±1.5 ﹣1

Dimensions of Existing Products

D	D1	D2	H	H1	B	R 1	R2	R3	δ
φ268	φ600	φ1024	270	180	60	30	30	30	10
φ306	φ600	φ1024	270	180	60	30	30	30	10
φ276	φ500	φ1268	400	355	132	10	20	15	8
