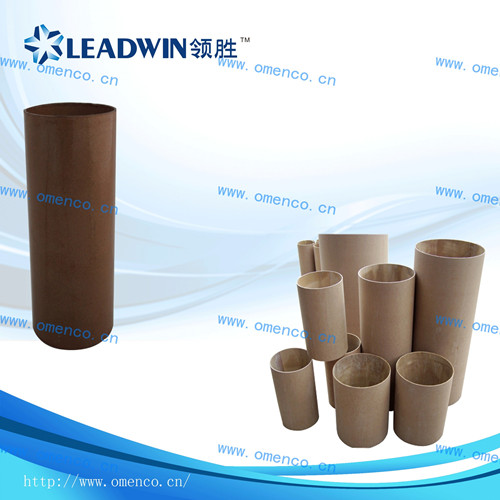

Type: 3520 (China standard)

1. It is made from paper that impregnated with phenolic resin under pressure and heat. With high mechanical strength and electrical properties,

2. Application

It is used for the insulating spare parts of the electrical appliances and transformers, also used under humidity environment and transformer oil,

3. Thermal grade is class E.
4. Outer diameter: 10-300 mm         Wall Thickness: 1-50 mm
Length: 1000 mm

5.      Color: yellow, red , green, black.

6.      The other size can be supplied according to customers' requests.

※Products can be supplied sheets or shapes according to customer drawing

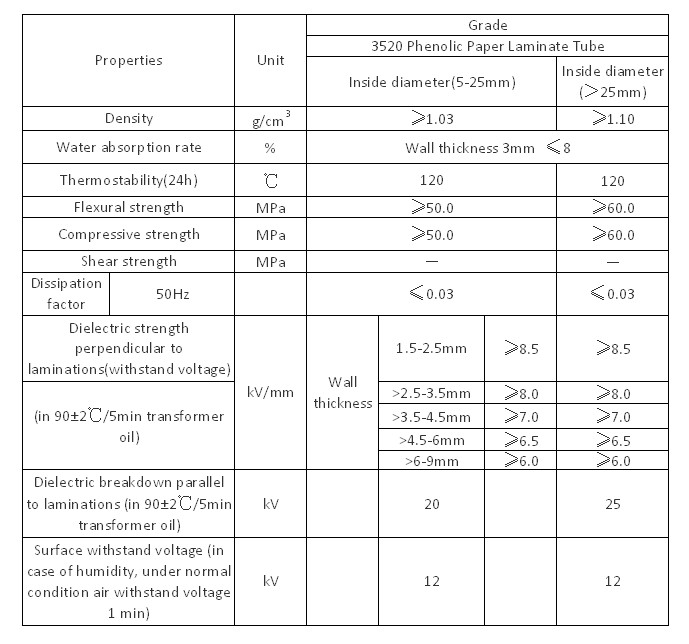

※Note: The values noted in below technical specification are given only for our customers’ reference and should not be used in writing specifications.
