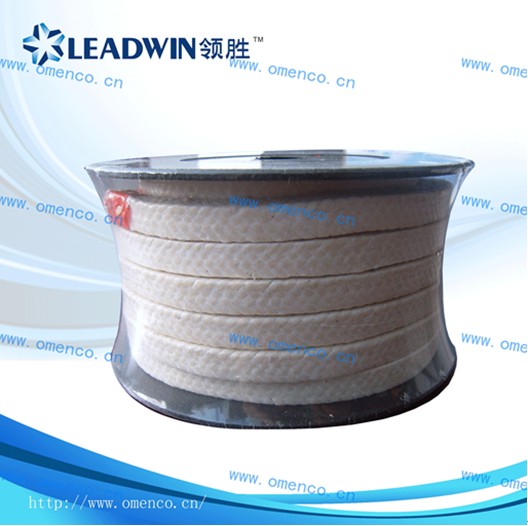

1. This packing is made of ramie fiber impregnated with PTFE plus lubricant.
2. Application:
For pumps, refiners, filters and valves in the brewing and beverage industry, ship-building
and other fields. Especially resistant to abrasive media such arise, In the paper industry, sea-water industry.
3. Stock dimension:
|
mm sq. |
3.2 |
4 |
5 |
6 |
8 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
|
m/kg abt. |
75 |
48 |
31 |
21.4 |
12 |
7.7 |
6.4 |
5.3 |
3.9 |
3 |
2.4 |
1.9 |
1.6 |
1.2 |
|
Inch Sq. |
1/8" |
5/32" |
3/16" |
1/4" |
5/16" |
3/8" |
7/16" |
1/2" |
9/16" |
5/8" |
11/16" |
3/4" |
7/8" |
1" |  |
